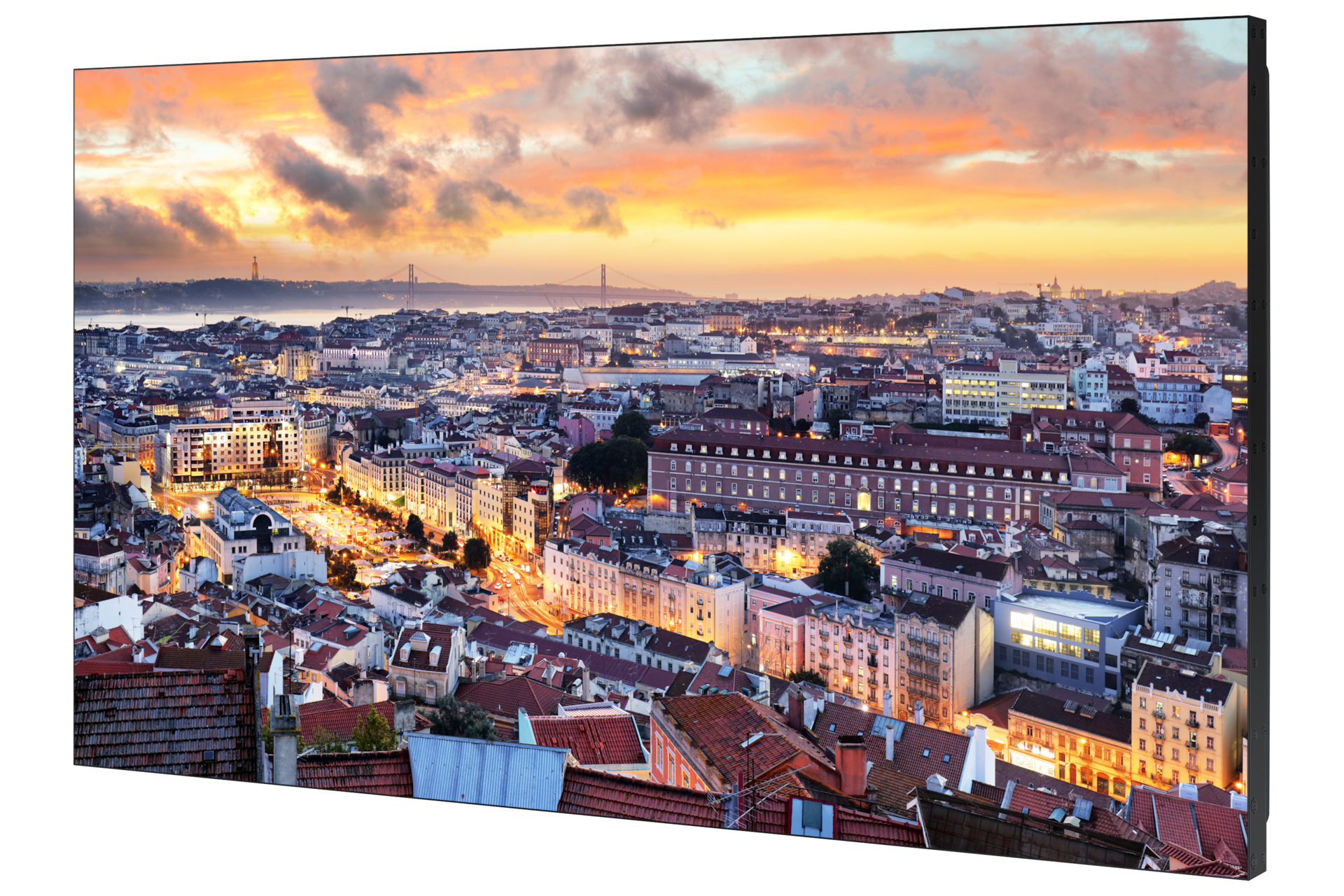

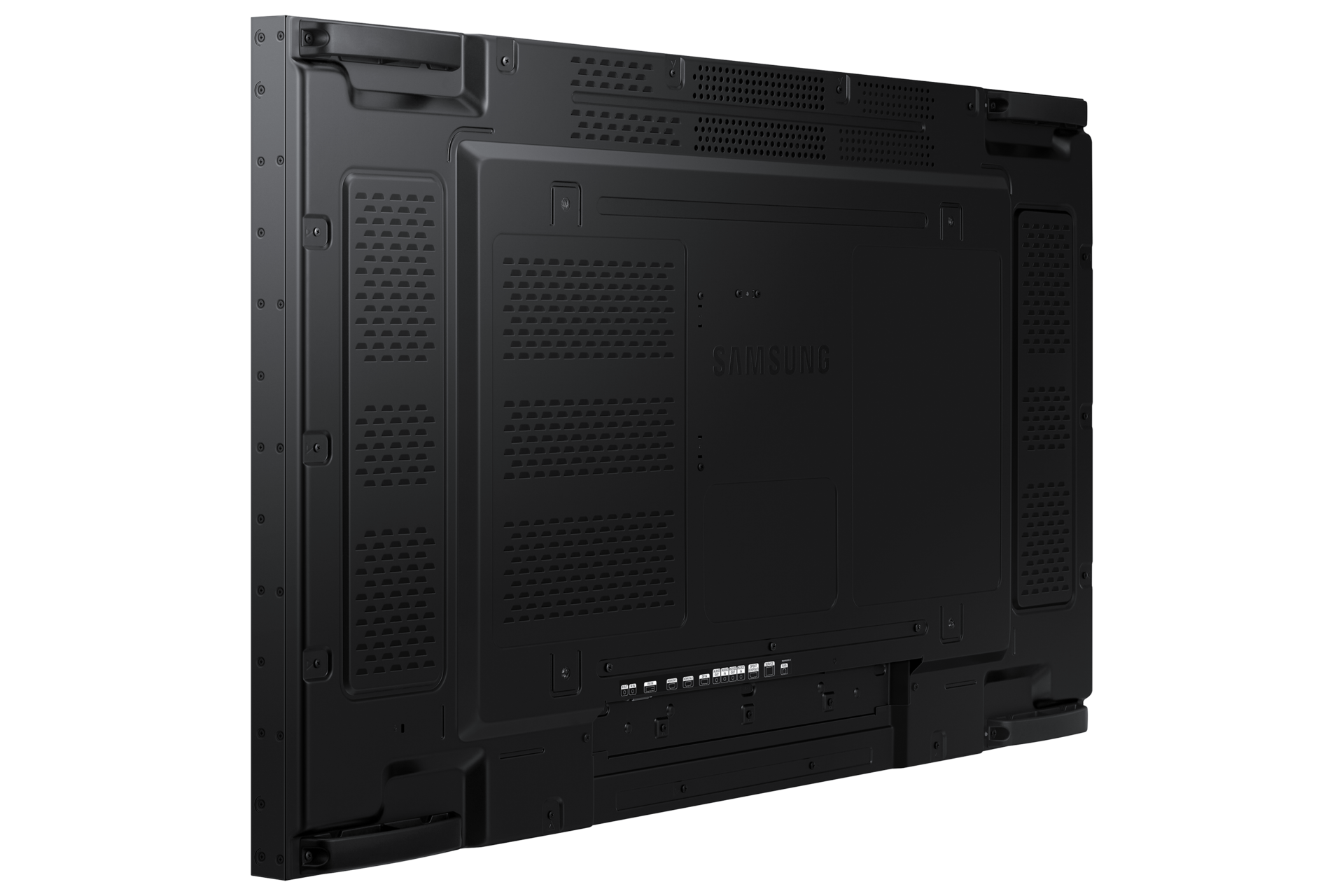

Samsung 55" VHC-E Series 700nit FHD Video Wall (While They Last!)

Samsung's VHC-E series provides an immersive, dependable 24/7 viewing experience. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from classroom auditoriums and halls to lecture rooms, labs and administrative buildings.

Features include:

Transform Any Space with High-Impact Visuals

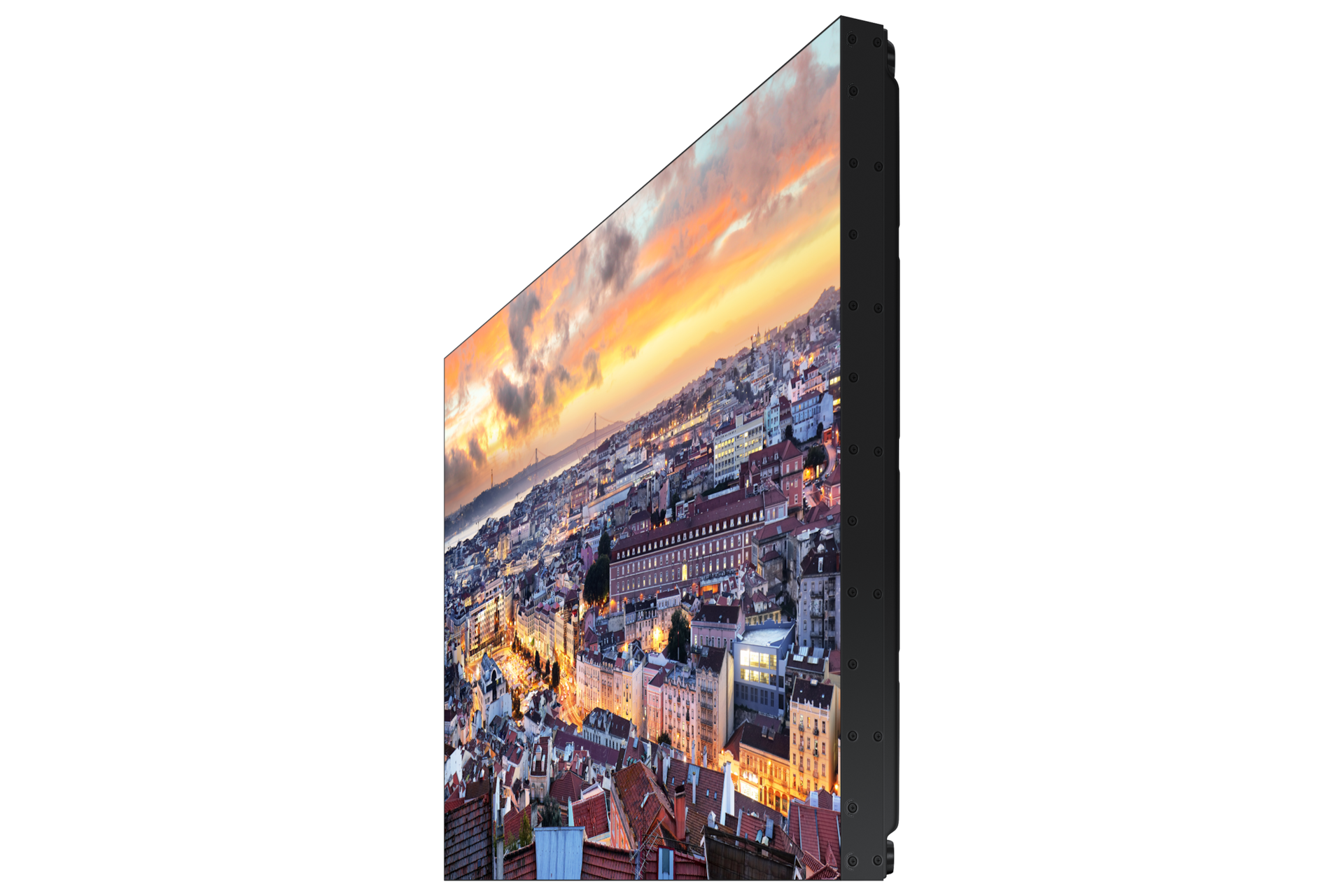

The slender design and 70.4mm cabinet depth provides flexible installation options, opening the door to endless possibilities. The extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture for a captivating visual experience.

Vibrant Image in Any Light

Non-glare panels ensure an even distribution of light across the screen, maintaining the accuracy and vibrancy of the content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

View Content from Any Angle

Wide viewing angles ensure that the content is easily visible even if viewers aren’t standing directly in front of the display. Regardless of the screen's location, the vivid colors and details will be clearly seen by audiences.

Image Enhancement Technology

Samsung’s powerful image enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

Comprehensive Calibration to Fit Your Needs

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.

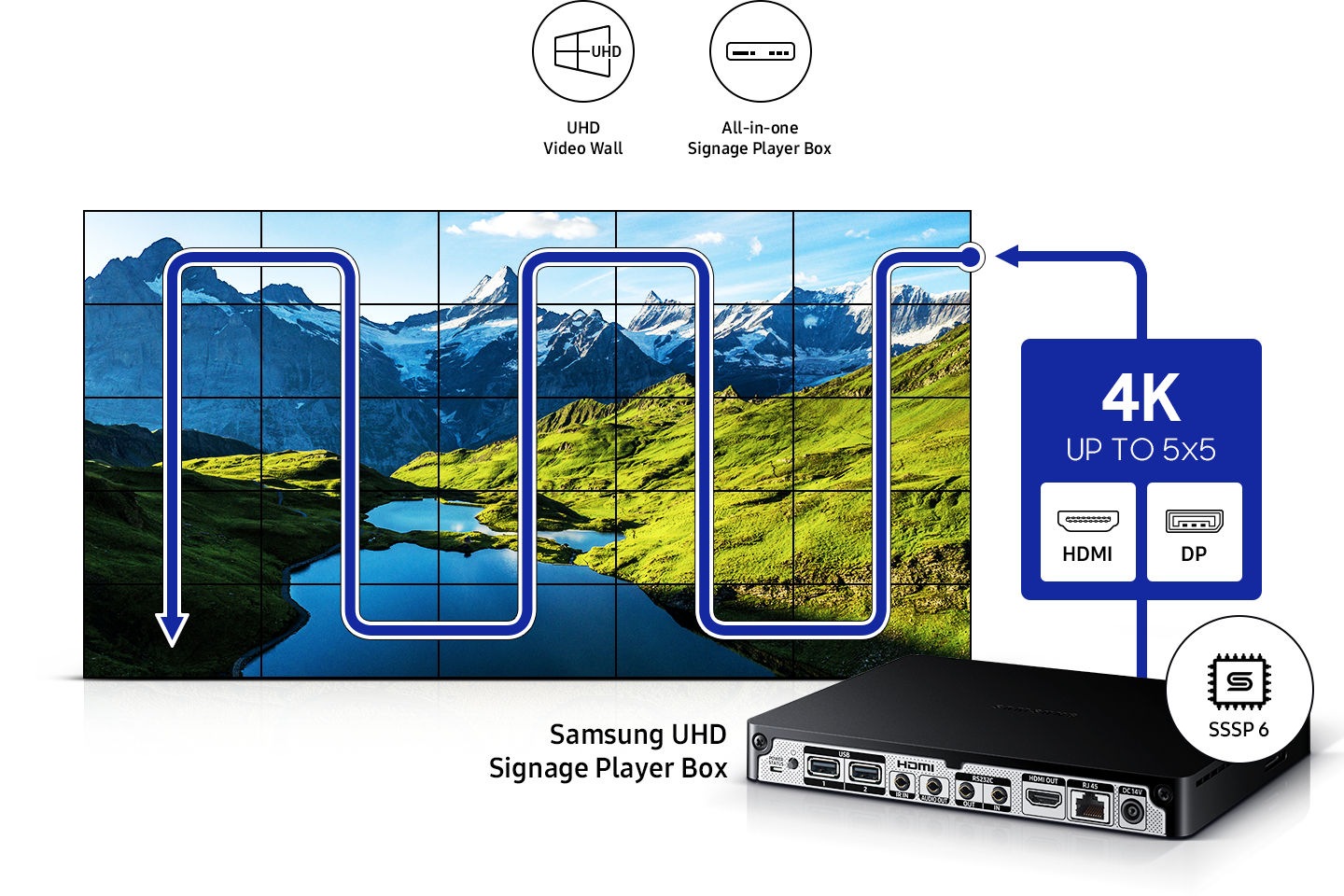

Advanced Presentation, Simplified Operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphics card. Samsung's UHD Signage Player Box* streamlines functionality by combining the media player and content management software.

Industry Standard Certified
The VHC-E series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA certified test to minimize possible damage during delivery.

---

Specifications:

• Contrast Ratio (Dynamic): 45,000:1
• Orientation: Landscape / Portrait
• H-Scanning Frequency: 62.7kHz ~ 72.3kHz
• V-Scanning Frequency: 57Hz ~ 63Hz
• Maximum Pixel Frequency: 82MHz

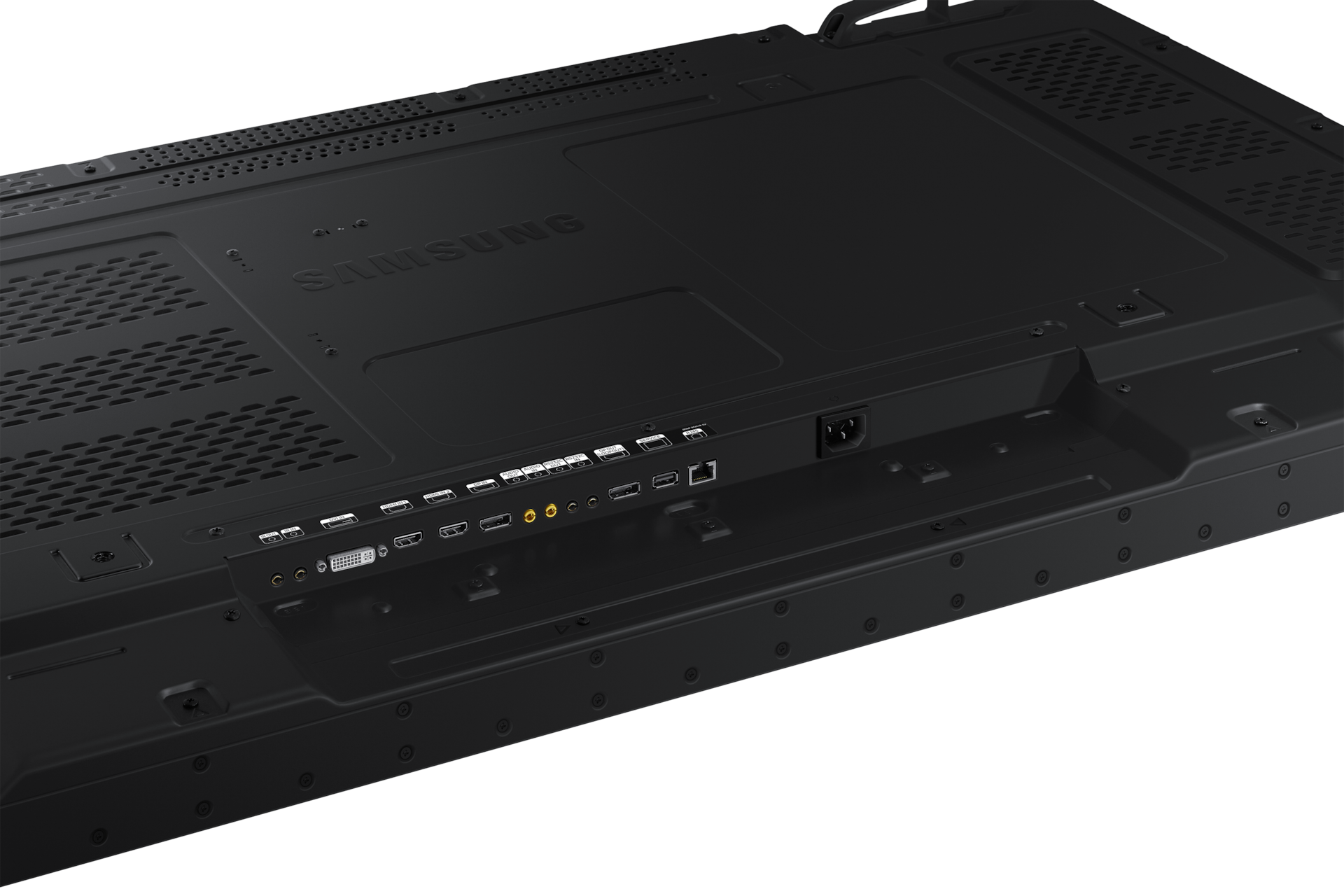

• Connectivity:
  • External Control: RS232C(in/out), RJ45
  • RGB Input: DVI-D, Display Port 1.2
  • Video Input: HDMI 2.0 (2)
  • HDCP Input: HDCP 2.2
  • Audio Input: Stereo mini Jack
  • USB Input: Only F/W upgrade
  • RGB Output: DP1.2(Loop-out)
  • Audio Output: tereo mini Jack
  • External Sensor: Detachable type(IR)

---

Panel:

• Pixel Pitch (mm): 0.63mm(H) * 0.63mm(V)
• Response Time(G-to-G): 8ms
• Diagonal Size Class: 55"
• Diagonal Size Measured: 54.6" / 138.7cm
• Power Type: IPS
• Resolution: Full HD (1920 x 1080)
• Active Display Area(mm): 1209.6 * 680.4mm
• Brightness: Max 500 cd/m2
• Contrast Ratio (in Darkroom): 1,200:1
• Viewing Angle (H/V): 178/178
• Display Colors: 8 bit - 16.7M
• Color Gamut: 72%
• Operation Hour: 24/7
• Haze: 25%

---

Physical Specifications:

Dimensions: 47.7" x 26.9" x 2.8"

Weight: 43 lbs. (Approximate)

---

* - Signage Box sold separtely.
